Delivery con Charly Brito
Recurso gratuito · Plantilla en ExcelFree resource · Excel template

Tablero Ejecutivo de Delivery

Executive Delivery Dashboard

Cuatro preguntas, una página, cada semana: ¿vamos en fecha?, ¿alcanza el dinero?, ¿el cliente está aceptando lo entregado? y ¿qué riesgos pueden cambiar el resultado?

Four questions, one page, every week: are we on schedule? is the money enough? is the client accepting what we deliver? which risks could change the outcome?

Excel · 6 hojasExcel · 6 sheetsValor ganado (SPI · SPI(t) · CPI)Earned value (SPI · SPI(t) · CPI)100% configurableFully configurableEspañol · EnglishEnglish · EspañolCC BY 4.0

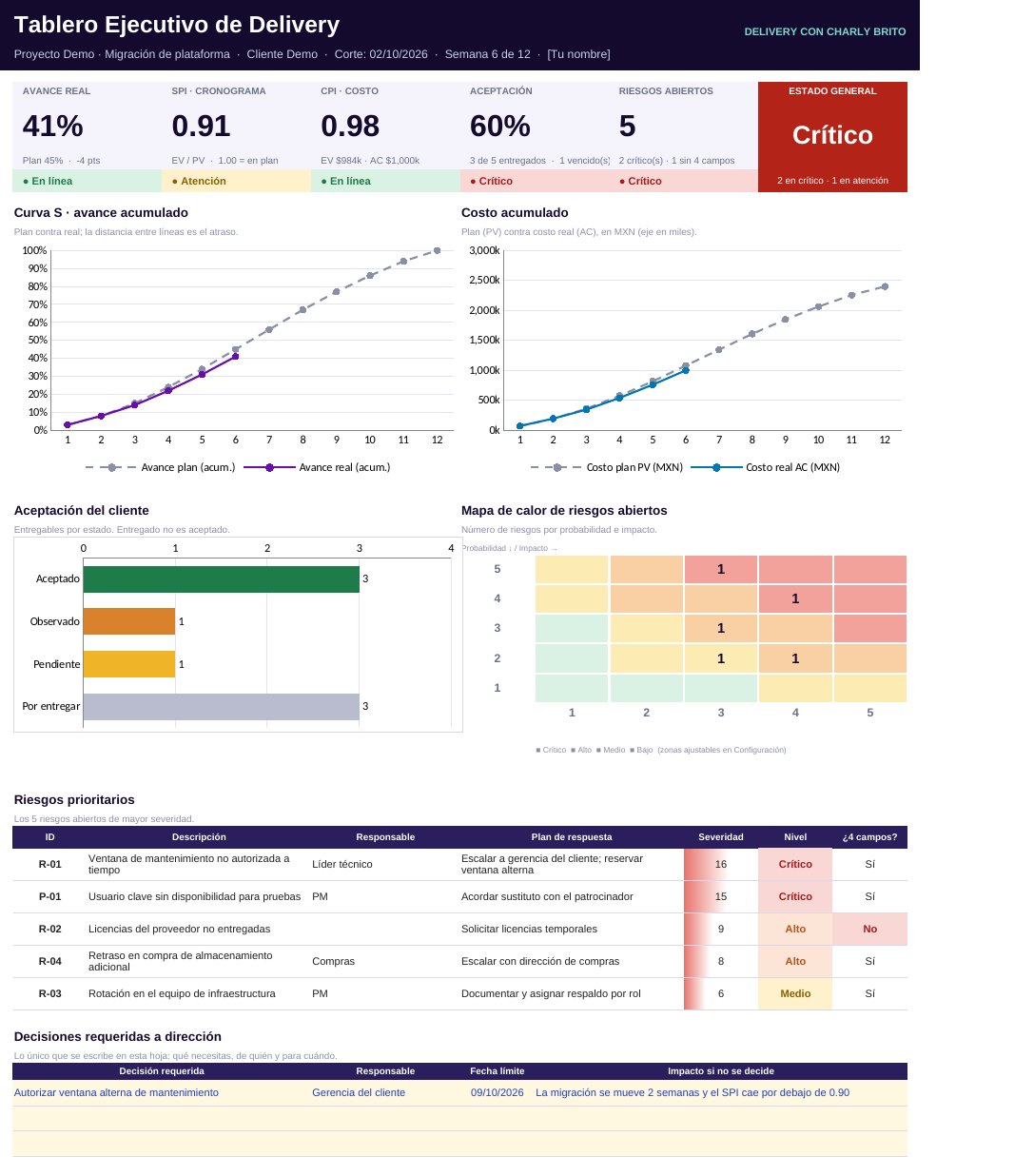

Vista previa del tablero: indicadores, curva S, costo acumulado, aceptación y mapa de calor de riesgosDashboard preview: indicators, S-curve, cumulative cost, acceptance and risk heat map
Qué respondeWhat it answers

Lo que dirección pregunta, antes de que lo pregunte.What leadership asks, before they ask it.

¿Vamos en fecha?Are we on schedule?SPI en valor y SPI(t) en tiempo, con el desfase en semanas.SPI in value and SPI(t) in time, with the gap in weeks.
¿Alcanza el dinero?Is the money enough?Costo real contra plan y CPI.Actual cost vs. plan, and CPI.
¿El cliente acepta?Is the client accepting?Entregado no es aceptado: días en revisión.Delivered is not accepted: days in review.
¿Qué puede fallar?What could go wrong?Mapa de calor y top 5 de riesgos abiertos.Heat map and top 5 open risks.
Qué incluyeWhat's included

Seis hojas, una sola fuente de verdad.Six sheets, one source of truth.

01 · Tablero01 · Dashboard

Una página para decidirOne page to decide

Cinco indicadores, estado general automático, lectura de valor ganado (PV, EV, AC, SPI(t) y avance verificado), curva S, costo, índices por semana, aceptación, mapa de calor y decisiones requeridas.Five indicators, automatic overall status, earned value reading (PV, EV, AC, SPI(t) and verified progress), S-curve, cost, weekly indices, acceptance, heat map and decisions required.

02 · Configuración02 · Settings

Todo es ajustableEverything is adjustable

Moneda, presupuesto, regla de valor ganado (0/100, 50/50 o % estimado), umbrales del semáforo, nombre del periodo y los textos de estados y niveles.Currency, budget, earned value rule (0/100, 50/50 or % estimated), traffic-light thresholds, period name and the status and level texts.

03 · Seguimiento semanal03 · Weekly Tracking

Valor ganado sin fórmulasEarned value without formulas

Capturas plan y real; EV, SPI, CPI, SPI(t) y el desfase en periodos se calculan solos, con el estado de cada semana.Enter plan and actuals; EV, SPI, CPI, SPI(t) and the schedule gap in periods are calculated automatically, with each week's status.

04 · Entregables04 · Deliverables

Entregado no es aceptadoDelivered is not accepted

Estado, días en revisión, atraso contra compromiso y aporte al valor ganado según la regla elegida, para contrastar el avance capturado con el verificado.Status, days in review, delay vs. commitment and contribution to earned value under the chosen rule, to compare reported progress with verified progress.

05 · Riesgos05 · Risks

Gestionados, no solo anotadosManaged, not just listed

Responsable, fecha de revisión, disparador y plan de respuesta. Si falta uno, se marca en rojo.Owner, review date, trigger and response plan. If one is missing, it turns red.

06 · Léeme06 · Read Me

Instrucciones en una hojaInstructions on one sheet

Cómo capturar, qué significa cada indicador y cómo se calcula el semáforo.How to enter data, what each indicator means and how the traffic light is calculated.

Cómo usarlaHow to use it

De cero a tablero en 15 minutos por semana.From zero to dashboard in 15 minutes a week.

Un recorrido rápido por las seis hojas: qué se configura una sola vez, qué se captura cada viernes y qué se calcula solo.A quick tour of the six sheets: what you set up once, what you enter every Friday and what is calculated automatically.

English subtitles. Slide titles and spreadsheet screens show the Spanish edition, which works exactly the same way.

Paso a pasoStep by step

  1. Configura una vezSet it up onceEn “Configuración”: proyecto, moneda, presupuesto aprobado (BAC) y umbrales acordados con tu cliente o dirección. Si cambias los textos de estados, hazlo antes de capturar.In “Settings”: project, currency, approved budget (BAC) and the thresholds agreed with your client or leadership. If you change the status texts, do it before entering data.
  2. Carga la línea baseLoad the baselineEn “Seguimiento semanal”, el avance y costo planeados de todo el proyecto.In “Weekly Tracking”, the planned progress and cost for the whole project.
  3. Cada viernes, captura lo realEvery Friday, enter actualsAvance y costo de la semana cerrada. La semana actual se detecta sola.Progress and cost for the closed week. The current week is detected automatically.
  4. Actualiza entregables y riesgosUpdate deliverables and risksEstados, fechas de revisión y los 4 campos de cada riesgo.Statuses, review dates and the 4 fields of each risk.
  5. Comparte una páginaShare one pageEl tablero se calcula solo. Escribe las decisiones que necesitas y expórtalo a PDF en una hoja horizontal.The dashboard calculates itself. Type the decisions you need and export it to PDF on one landscape page.
Vista completaFull view

Así se ve con datos de ejemplo.This is how it looks with sample data.

Los datos son ficticios. El estado general toma el peor indicador: un riesgo crítico abierto no se esconde detrás de un tablero en verde.The data is fictional. Overall status takes the worst indicator: an open critical risk doesn't hide behind a green dashboard.

Tablero completo con datos de ejemploFull dashboard with sample data

Descarga la plantillaDownload the template

Excel · v1.1 · gratuita · licencia CC BY 4.0 · también en inglésExcel · v1.1 · free · CC BY 4.0 license · also in Spanish

Descargar plantilla (Excel) Download template (Excel)
LicenciaLicense

Puedes usar, copiar y adaptar esta plantilla, incluso en proyectos comerciales, siempre que cites al autor. Texto sugerido:You may use, copy and adapt this template, including in commercial projects, as long as you credit the author. Suggested text:

Basado en “Tablero Ejecutivo de Delivery” de Carlos Alberto Ruiz Brito · Delivery con Charly Brito · carlosruizbrito.com · CC BY 4.0 Based on “Executive Delivery Dashboard” by Carlos Alberto Ruiz Brito · Delivery con Charly Brito · carlosruizbrito.com · CC BY 4.0
